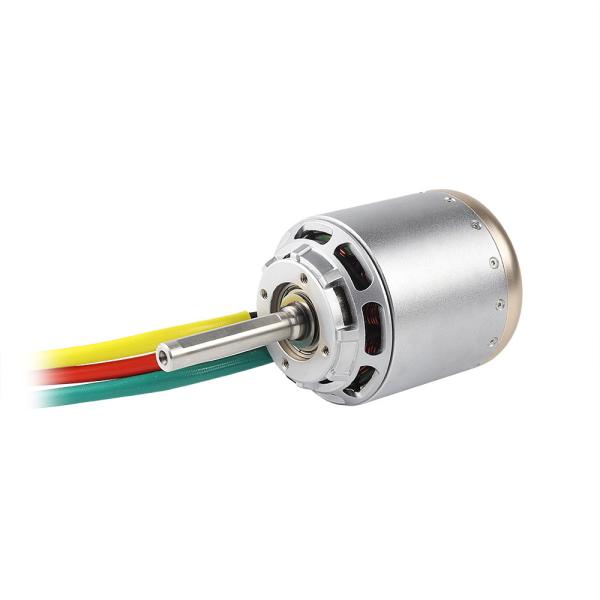

High Power Density BLDC Permanent Magnetic Synchronous Motor for UAV/Drone
Product Feature
1. Unique external rotor design
2. Midium speed with high efficiency
3. Super high power density
4. Small size
5. Low noise and vibration
6. Water resistance and corrosion resistance
7. Patented one-piece fan design
Specifications
| Model Type | W70KV240-8 |
| Voltage | 50VDC |
| Working Speed | 10000rpm |
| Output Power | 8KW |
| Continuously Operating Current | 190A |
| Efficiency | 91% |

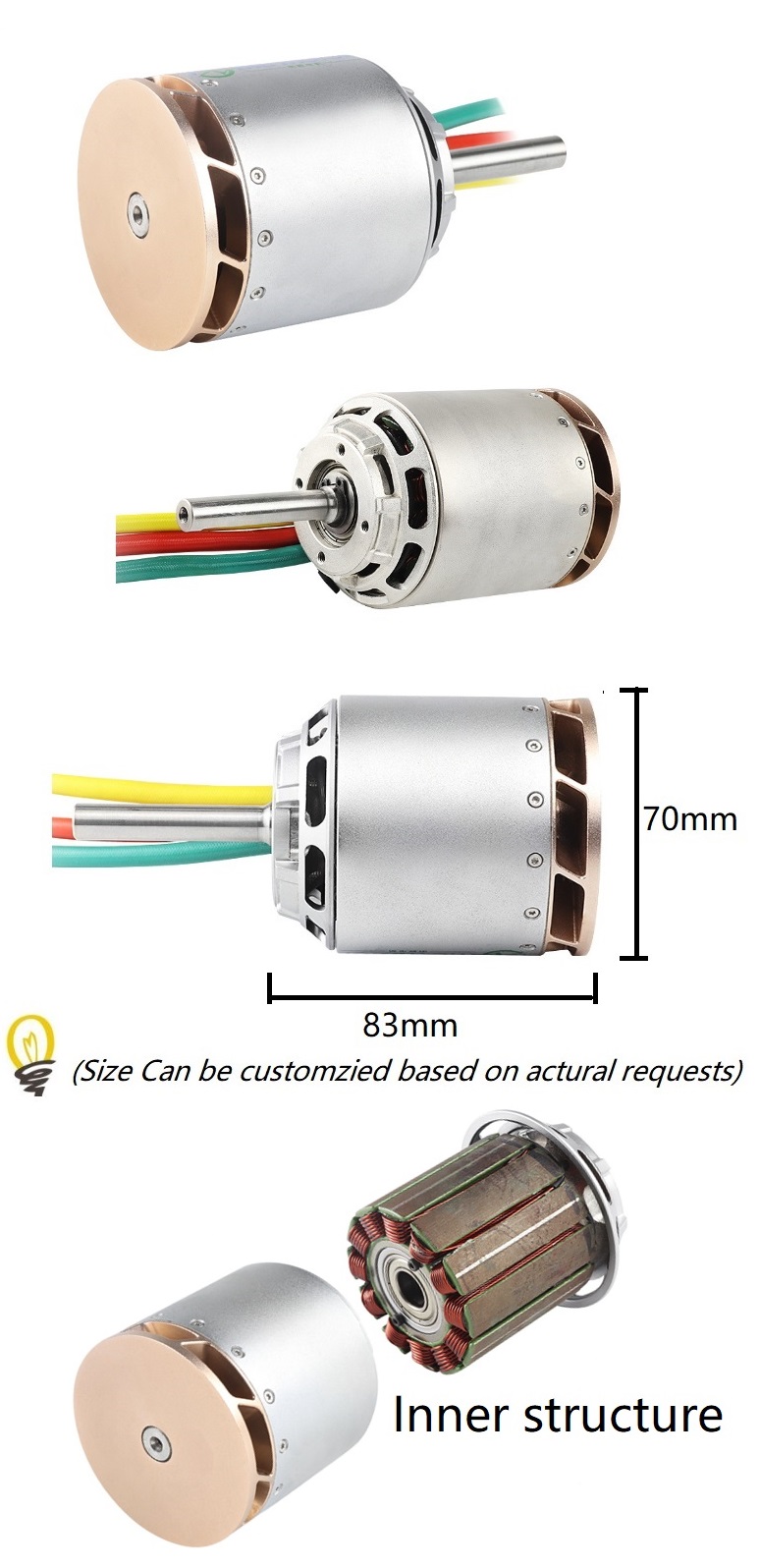

| Motor Diameter | 70mm |
| Motor Length | 93.5mm |
| N.W | 1.42KG |
| Power Density | 5.63kw/kg |
More Details
1. Casing/Housing: Super strong Alloy shell (Stainless steel/alloy optional)
2. 220°C grade corona resistant varnished wire
3. NHN Insulation paper
4. High grade NdFeB permanent magnet
Application
Large load electric-powered unmanned aerial vehicles(UAV),including agriculture and industry
Packing
Color boxes, or customization packages also acceptable
1. Different cartons designs optional (Please kindly note: different designs, price might be differenert, please check with our sales before placing your orders)
2. Most of our motors are customized, please confirm the carton size with our sales when all your requirement are confirmed.
Shipping direction
1. Sample order: our stock cargons L/T 1~3 days, customized 45~60 days
2. Mass production order: 15~25 days based on the quantity
3. By air: we normally take DHL/FEDEX/UPS/TNT or other door to door service
4. By sea: LCL/FCL are both ok.
FAQ
1. Is this UAV Motor also permanent magnet synchronous motors?
Yes. MC MOTOR makes only permanent magnet motors
2. How long this motor can work every time?
This motor is NOT S1 duty type, Max working time can not be more than 30 minute
3. Do you also offer motor controller as a set?
Yes, obsolutely. We can provide motor + controller to our clients.
Can not find the answer to your questions, please send your questions or inquiry to our email address
helen.peng@mcmotor.cn
