Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent Magnet Motor
Specifications:
| Model #: | SRPM95H2W18 |
| Voltage: | 380V AC |
| Rated Power: | 18KW |
| Rate Torque : | 2.29 N.m |
| Working speed: | 24000rpm |
| Efficiency: | 95.5% |
| Duty Type: | S1 |
| Isolation: | H |
| Water/dust Proof: | IP54 |
| Pole Number: | 2 |
| N Weight: | 18KG |
| Cooling Method: | Circulating water cooled |
Feature:
1) Water cooled motor, easy operation
2) Extra high speed to 75000rpm
3) small size L235mm* Φ260mm
4) light weight : ONLY 18.8KG
5) Long lifetime, durability, easy mantainance
6) Application: turbine, fan, blowers, centrifugal compressors
Package:
wooden/paper box as below
Other high speed water cooled models you may interested in:
| MODEL | Voltage
(V AC) | Power
(kW) | Speed
(rpm) | Torque
(N.m) | Efficiency
(%) | Duty type | Insulation | IP | Pole | NW
(kg) | Cooling | Resolver | Install |
| SRPM112H4W7.5 | 380 | 7.5 | 18000 | 4 | 93.2 | S1 | H/F | IP54 | 4 | 19 | Water | N/A | B35 |
| SRPM112H4W18 | 450 | 18 | 20000 | 8.6 | 94.5 | S1 | H/F | IP67 | 4 | 17.5 | Water | N/A | B5 |
| SRPM112H4W8 | 330 | 8 | 24000 | 3.2 | 94 | S1 | H/F | IP54 | 4 | 6 | Water | N/A | B5 |
| SRPM112H4W20 | 330 | 20 | 24000 | 8 | 94.3 | S1 | H/F | IP54 | 4 | 19 | Water | N/A | B5 |
| SRPM112H4W22 | 380 | 22 | 24000 | 8.8 | 94.3 | S1 | H/F | IP54 | 4 | 19 | Water | N/A | B35 |
FAQ
1. Can performanent magnet synchronous motor be used as generator?
No. Permanent magnet synchronous motor is absolutely different from generator. It is only ac motor that outputs speed and torque to drive electric devices, but not power supply.
2. Why can not directly use three phase ac supply voltage to start permanent magnet synchronous motor?
Becuase rotor is with big innertia, and magetic files spins so fast that static rotor has no way to spin with magetic filed.
3. Any special technical request on this motor's VFD driver? And Do you have such driver?
Permanent magnet synchronous motor's driver should be vector control VFD with special inner software, such as Siemens 6SE70 series, Yakawa CR5 series, ABB ACS800 series, Mitsubishi A740 series, B&R P84 and P74 series, etc.. Yes, our MH300 series VFD matches with this motor.
4. Is there any protective measures to defend permanent magnet rotor from failure?
Yes, each permanent magnet rotor passes corrossion resistance, consistency, high temperature demagnetization test, linear demagnetization test, etc. Its demagnetization index is within 2%. But if working environment is serious oxiditive corrosion, kindly advise for higher protection level.
5. Where is this permanent magnet synchronous motor normally used to?
This permanent magnet synchronous motor is normally used to variable frequency speed situation.
|
|

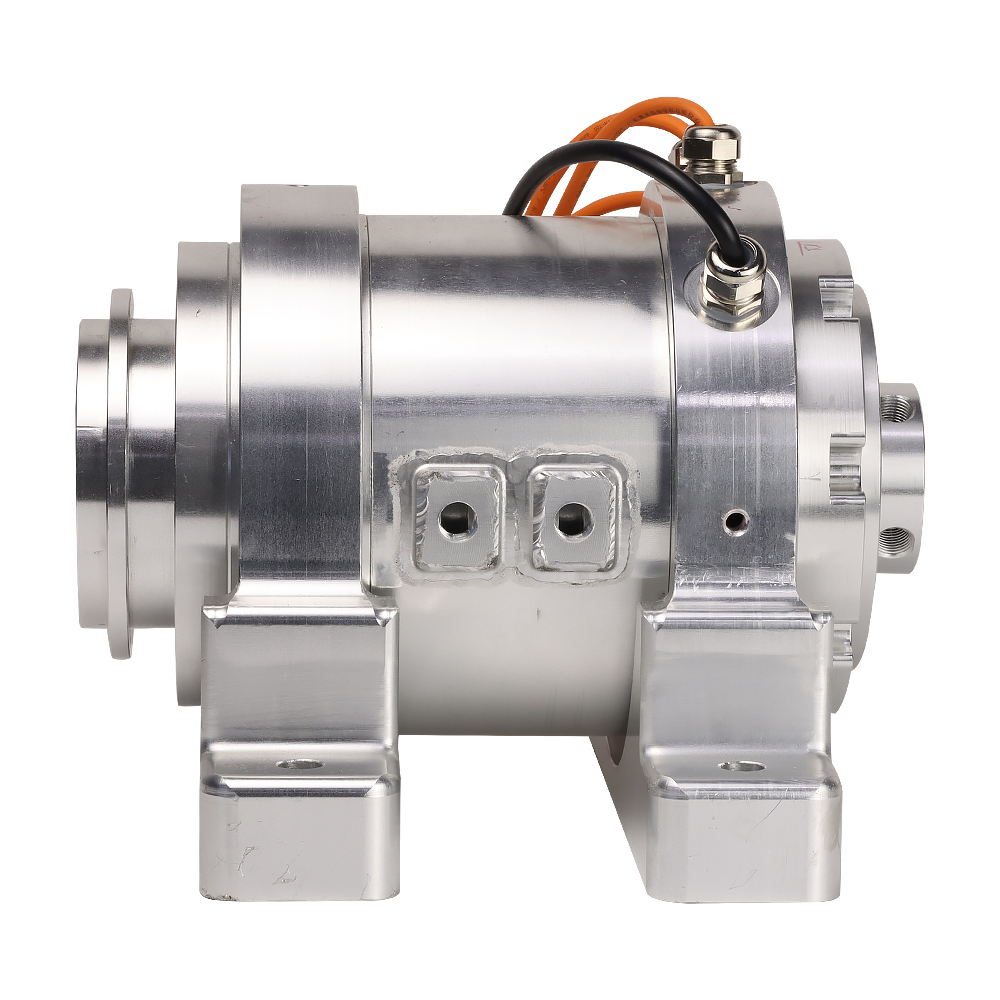

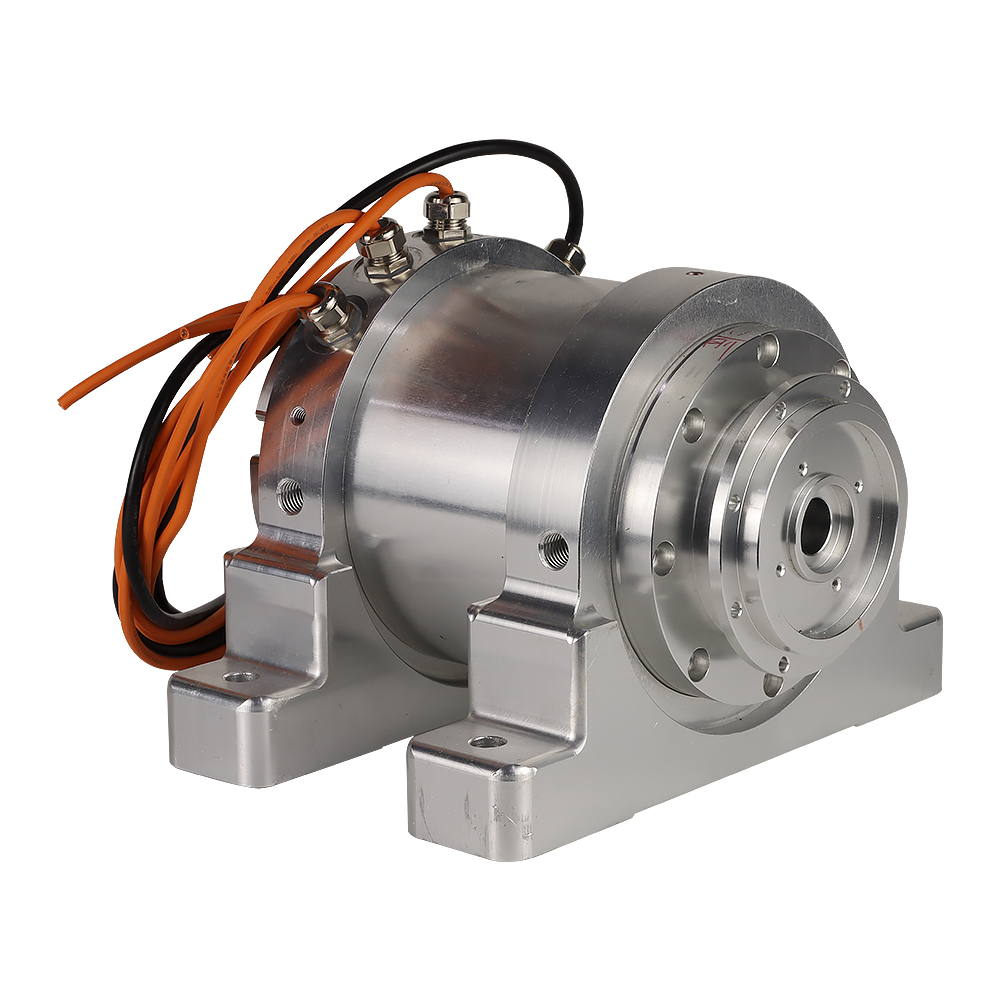

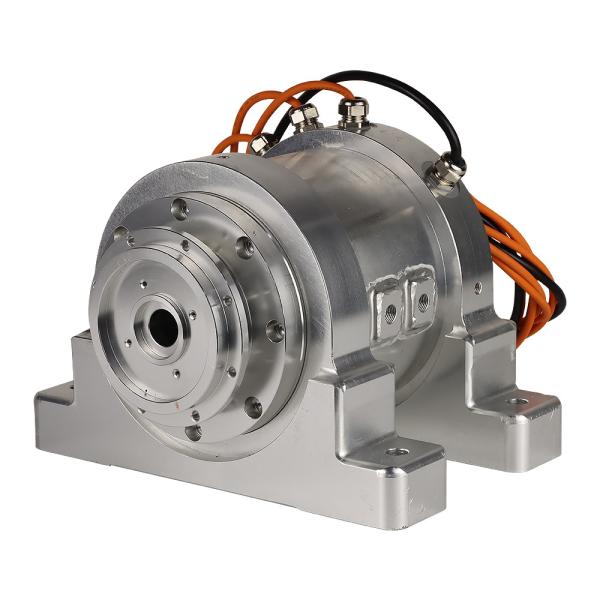

Water Cooled 380VAC 18kw 75000rpm High Speed Synchronous Permanent magnet Motor Images
|
